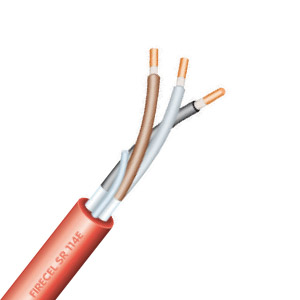

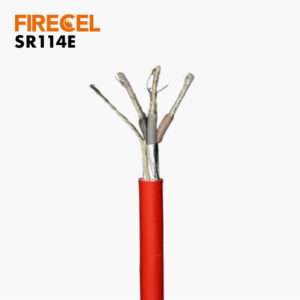

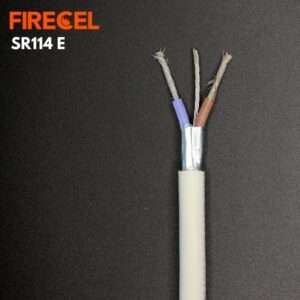

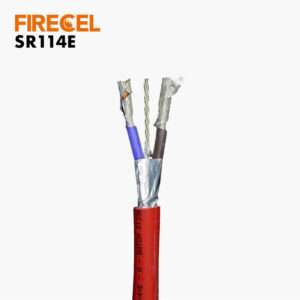

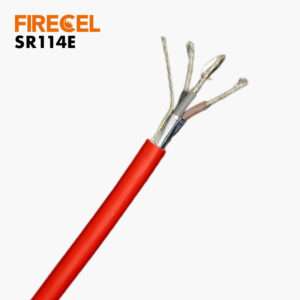

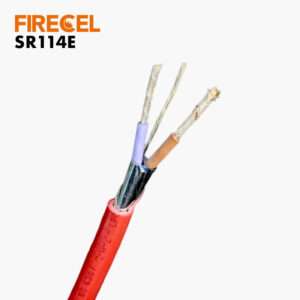

FIRECEL SR114E Fire Resistant Cable – 300/500V Solid and Stranded Conductor

Operating Temperature
-40°C to +90°C

Minimum Bending Radius
6 times the outer diameter.

Colour Code up to 4 Cores to HD 308
2 cores blue – brown
3 cores brown – black – grey
4 cores blue – brown – black – grey
7 cores centre: brown
1st layer: brown – black – 4 cores white
12 cores centre: brown – black – white
1st layer: brown – black – 7 cores white
19 cores centre: brown
1st layer: brown – black – 4 cores white
2nd layer: brown – black – 10 cores white

Applicable Standards
Basic design BS 7629-1
Fire resistant BS 6387 (cat. C-W-Z)
EN 50200 (class PH120)
BS 8434-2 (120 min)
Flame retardant EN 60332-1-2
Acid gas emission EN 50267-2-1
Smoke density EN 61034-2

Cable Construction

Conductors
Plain annealed copper wire, solid conductor class1 or stranded conductor class 2 according to EN 60228.

Insulation
Mica/Glass fire resistant tape covered by high
performance fire resistant silicone rubber
type EI2 to BS EN 50363-1.

Cabling
Insulated cores are cabled together.

Overall Screen
Aluminium/polyester tape.

Circuit Protective Conductor
Uninsulated tinned copper conductor of the
same section and class as the insulated conductors
in the 2-, 3- and 4-core cables. Drain wire
of 0.5 mm2 tinned copper conductor is provided
in cables with more than 4 conductors.

Outer Sheath
LSZH thermoplastic material type LTS3 to

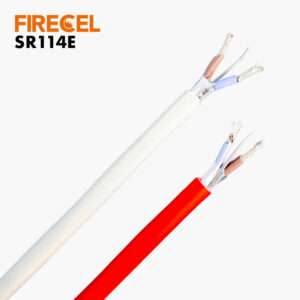

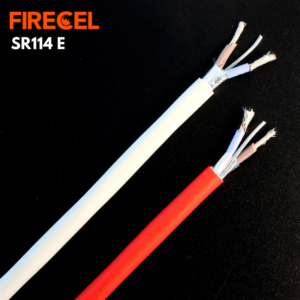

BS 7655-6.1. Colour red or white (other colours on request)
